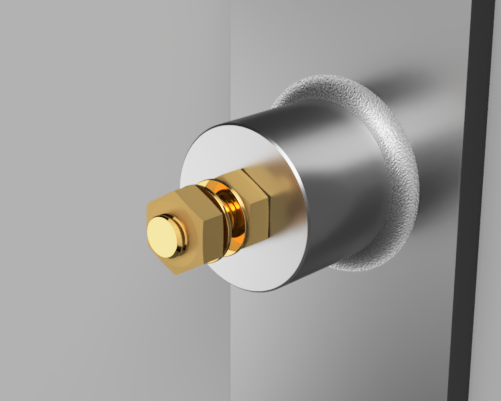

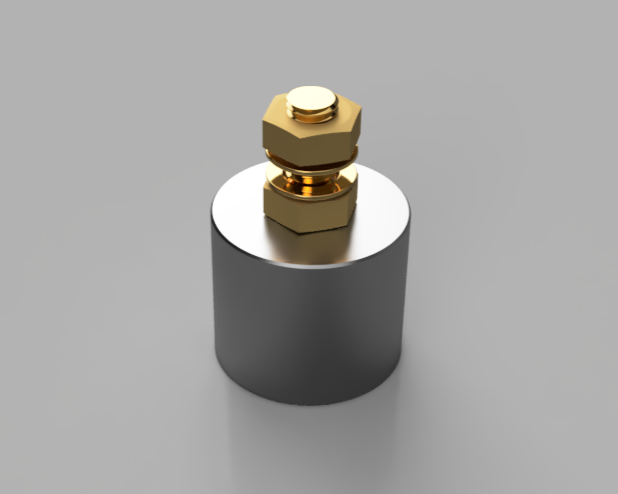

Earth Boss Type 1 Stainless welded on with fixings hardware brass or bronze

Earth Boss (Type 1) With Phosphor Bronze (PB) Hardware

Name: Earth Boss (Type 1) With Phosphor Bronze (PB) Hardware
Brand: A C Engineering
SKU: ACTYPE01-BH
Price: 31.00 AUD
Availability: InStock

$31.00

Type 1 Earth Boss specification :
Outside Diameter : 40mm (+/- 0.5mm)
Length : 35mm (+/- 0.5mm)
Thread : M10 x 1.5 Thru Hole

Boss Material : Stainless
AISI / ASTM: 316L
UNS Number: S31603
European EN Number: 1.4404 (X2CrNiMo17-12-2)
British Standard (BS): 316S13

Hardware Material : Bronze
PB102 / CuSn5: European standard CW451K and UNS C51000

Hardware Pack Items :
Qty 2 - M10 Nuts
Qty 2 - M10 Washers
Qty 1 - M10 Threaded bar (45mm long)

Please ensure the email used is VALID. All test certificates will be sent via EMAIL.
3.1 Certificates - Will be sent for any Earth Bosses Ordered,
Certificate of Conformity - Will be sent for any fixings.

All Items fall under ISO9001 and are EU/UK material.

Please Note : This is for the a Boss with Bronze hardware, If you require different hardware please see our other listings

We also sell hardware kits in standard or custom specification separately.

If you require custom Earth Bosses, Please feel free to get in contact, We can supply any size, material and threads, Including UNC, UNF.
